The TLS-C5 charger can be used for more than 4kw inverter power supply(EPS emergency power supply/UPS uninterruptible power supply),with
intelligent charging management,CPU process automatic control,according to the different capacity of battery to make charging safer and more
efficient.adopting temperature compensation technology,can control the size of charging current according to the change of temperature.effectively
maintain the battery internal substance activity.not only ensure the charging efficiency,and extend battery life.meanwhile having advanced three-stage
charging mode,constant current,constant voltage,automatic conversion charging technology,maximum activate battery to save charging time,under
the state of battery capacity saturated,CPU adopt intermittent charging mode,extend battery life.
TLS-C5 can be applied to more than 4kw inverter power source(EPS emergency power supply /UPS uninterruptible power supply),this charger has
intelligent charging management,this series chargers set standard charging curve of all the batteries between 7AH and 100AH,according to the
different capacity of battery to make charging safer and more efficient.adopting temperature compensation technology,can control the size of
charging current according to the change of temperature.effectively maintain the battery internal substance activity.not only ensure the charging
efficiency,and extend battery life.meanwhile having advanced three-stage charging mode,constant current,constant voltage,automatic conversion
charging technology,maximum activate battery to save charging time,under the state of battery capacity saturated,CPU adopt intermittent charging
mode,extend battery life.
Features:
● New type of three-stage charging algorithm
● CPU whole process of automatic control
● Intelligent charging management mode
● LED indication
● Input overvoltage,undervoltage,overcurrent,overtemperature protection of the environment
● Energy conservation and environmental protection design
|
型 號 |
TLS-C5 |
|
直流輸出電壓 |
192V/324V/492V |
|
輸出電流范圍 |
0-5A (可定制電流0-20A) |
|
直流輸出電壓可調范圍 |
±10% |
|
輸出對應電池容量 （電池的放電速率C=電池的實際放電電流(A)/電池的標稱容量(Ah)） |
充電電流0.1C,尖峰充電電流為0.2C |
|
輸入電壓范圍及頻率 |
185～260VAC連續輸入；47～63Hz |
|
波紋電壓 |
≤800mv |
|
效 率 |
輸入220VAC滿載 ≥90% |
|
高溫保護 |
≥85℃自動切斷輸出 |
|
靜態泄放電流 |
0.25mA |
|
溫度系數 |
±0.03%/℃(0-50℃) |
|
冷卻方式 |
內置風機 |
|
抗 震 性 |
10～500Hz.2G 10min,/1周期，時長60分，各軸 |
|
隔離耐壓性 |
輸入輸出間，輸入與外殼，輸出與外殼：1500V（1min） |
|
隔離電阻 |
輸入輸出間，輸入與外殼，輸出與外殼：500VDC/100MΩ |
|
工作溫度，濕度 |
－20℃～＋60℃, 不結露20%～95%RH |
|
LED狀態指示 |
分別指示恒流、恒壓、浮充、故障 |
|

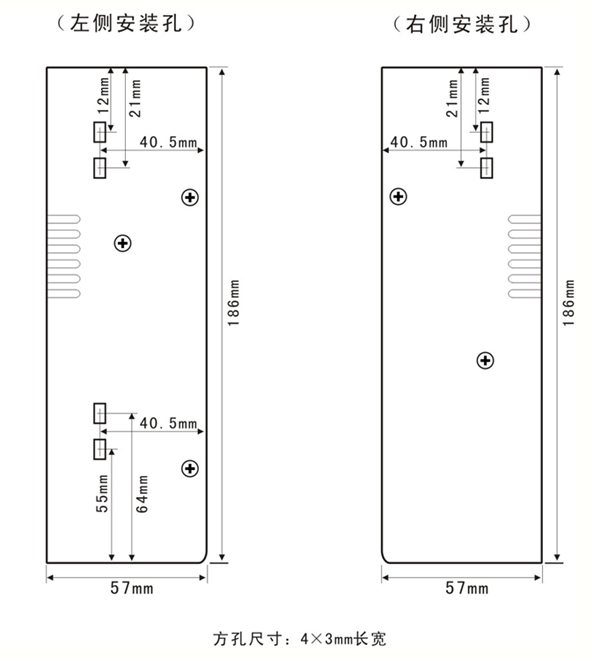

外行尺寸（包含突出部分） |
186×116×57mm |
|
重 量 |
1.6KG |
|
標 準 |
GB17945-2010 |
|
備注：其它規格可按要求訂做。 |
|
注1：標準出廠輸出電壓為每節電池充電電壓為13.8V，如用戶需要調整輸出電壓可另行商定
注2：以上所指電池為標稱12V的鉛酸蓄電池。
